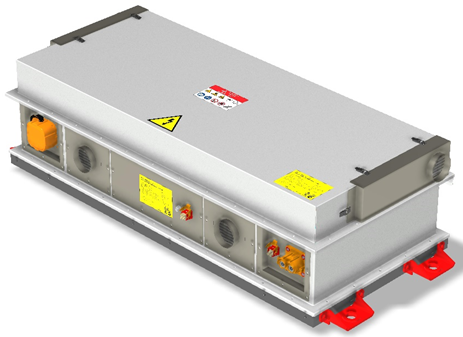

PE500-705
Specifications
This specification defines the characteristics of a rechargeable lithium ion battery manufactured by ENERTECH INTERNATIONAL INC.
enertech
SPECIFICATION
| Item | Specification | |
|---|---|---|
| Voltage (Nominal) | 621.6V (453.6 ~ 705.6 V) | |
| Capacity | 50 Ah (31 kWh) | |
| Configuration | 14 Modules of 12s2p | |
| Charging Method | CC-CV | |
| Charging Voltage | 621.6V | |
| Charging Current | Standard | 16.6 A |
| Maximum | 100 A | |
| Discharging Current | Standard | 16.6 A |
| Maximum | 150 A | |
| Internal Resistance | - | |
| Operating Temperature | Charge. | 0 ~ 55℃ |
| Discharge. | -20 ~ 55℃ | |
| Dimensions | Thickness | 384 mm |
| Width | 1405 mm | |
| Length | 651 mm | |
| Weight | 320 kg | |
