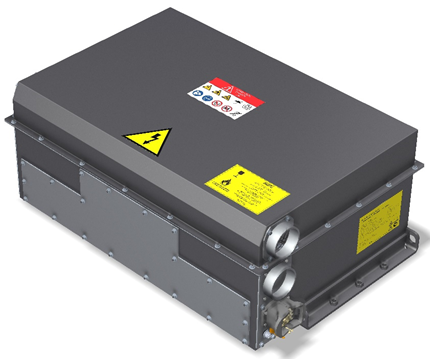

PE500-403H
Specifications
This specification defines the characteristics of a rechargeable lithium ion battery manufactured by ENERTECH INTERNATIONAL INC.
enertech
SPECIFICATION
| Item | Specification | |
|---|---|---|
| Voltage (Nominal) | 355.2 V | |
| Capacity | 50.0 Ah | |
| Configuration | 8 Modules of 12s2p | |
| Charging Method | CC-CV (Constant-voltage with limited current) | |
| Charging Voltage | 355.2 V | |
| Charging Current | Standard | 16.6 A |
| Maximum | 100 A | |
| Discharging Current | Standard | 16.6 A |
| Maximum | 150 A | |
| Internal Resistance | - | |
| Operating Temperature | Charge. | 0 to 55℃ |
| Discharge. | -20 to 55℃ | |
| Dimensions | Thickness | 320 mm |
| Width | 804 mm | |
| Length | 546 mm | |
| Weight | < 180Kg | |
